Product Details:

Part Number:Description:
ARC-CANAUXINFORD SUPERDUTY CAN TURN ON & AUX IN HARNESS KIT FOR PHASE II GAP RADIOS
Notes:  SELL WITH EC3T-18C869-A/E to sub for BC3T (cannot have sat!)

ARC-CANAUXIN  Images:
ThumbnailFull size image
ARC-CANAUXIN  Features:
Features
  • Allows installation of CAN-BUS Gap radios in Ford vehicles that do not have 16-pin CAN-BUS connector.
  • Supports AUX-IN for radios pre-programmed for AUX-IN (does not include 3.5MM aux-input extension cable).

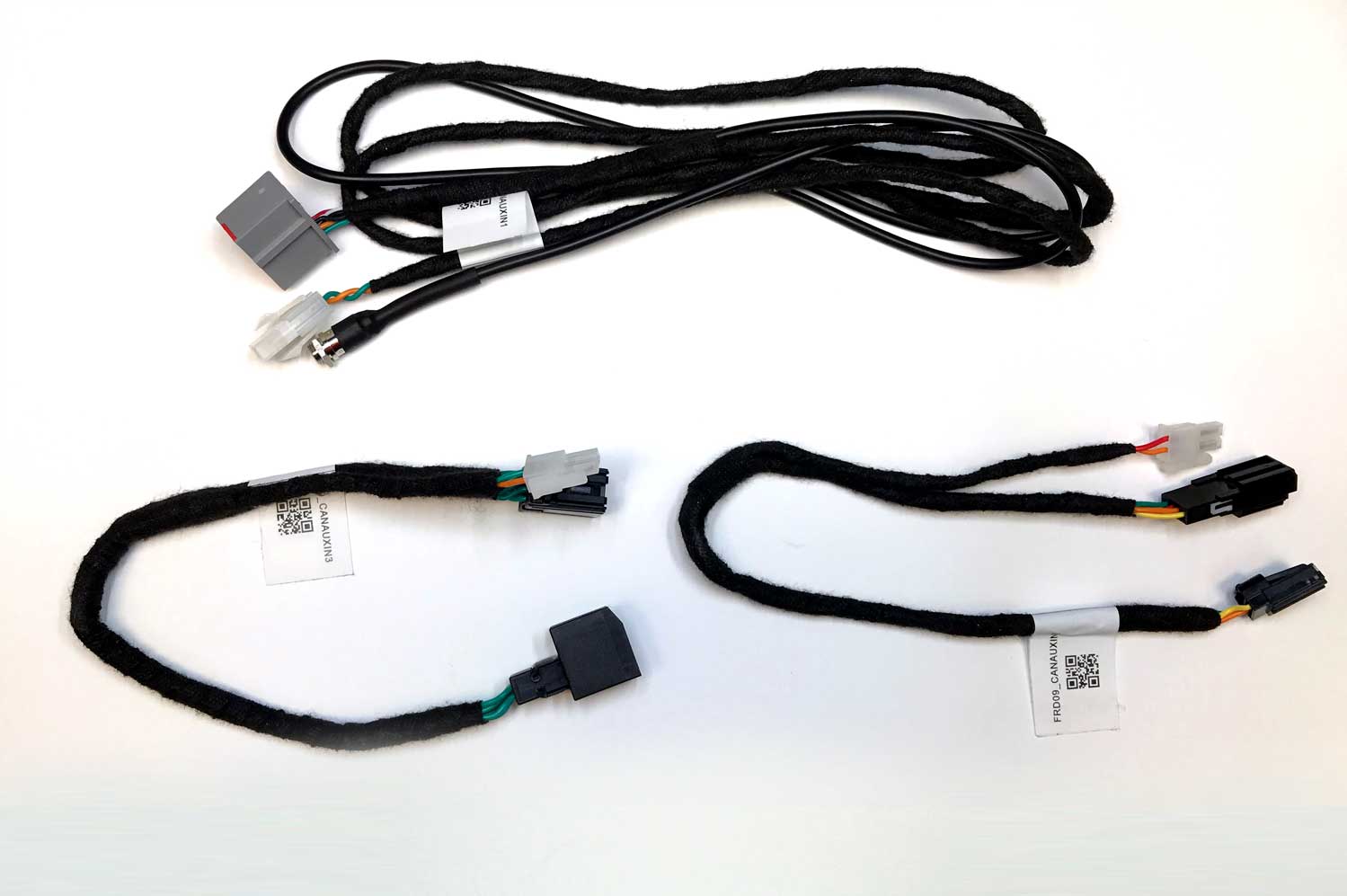

  • Includes radio side harness with 3.5mm AUX-IN input, trailer tow module CAN interface harness, and tire pressure monitor CAN interface harness.
ARC-CANAUXIN  Documents:
Part NumberDescription
ARC-CANAUXINARC-CANAUXIN Installation Guide
ARC-CANAUXIN  Vehical Applications:
ModelYear  Notes
F2502011-2017Uses Install Type 1 (install at tire pressure monitor) - see Install Guide
F3502011-2017Uses Install Type 1 (install at tire pressure monitor) - see Install Guide
F4502011-2017Uses Install Type 1 (install at tire pressure monitor) - see Install Guide
F5502011-2017Uses Install Type 1 (install at tire pressure monitor) - see Install Guide
